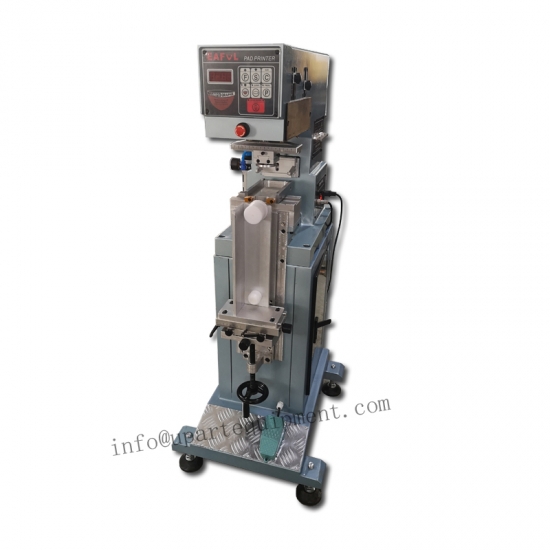

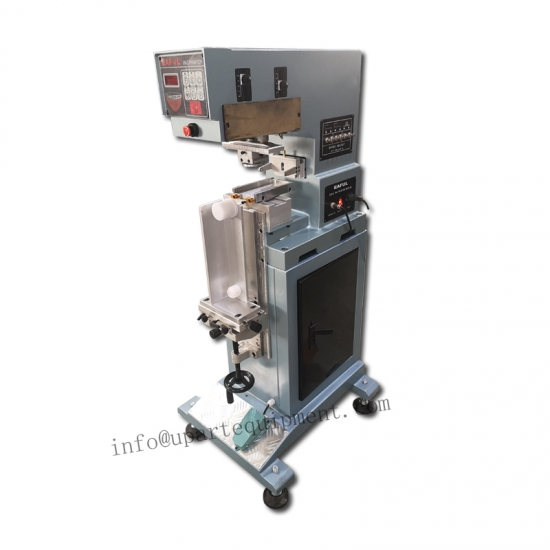

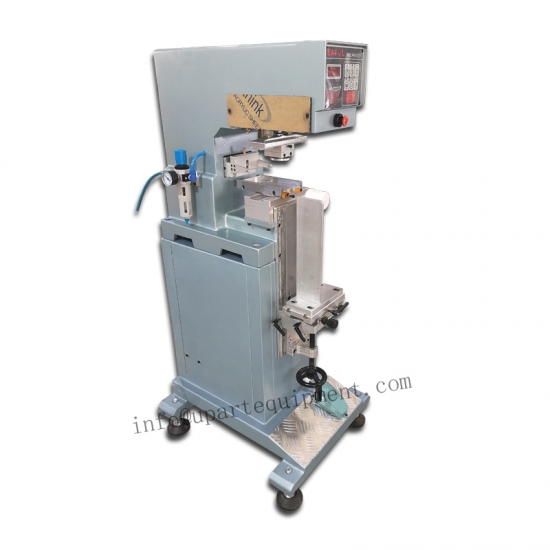

semi auto single color lock logo decal printing machine

  • Item NO.:EP-125AE
  • Order(MOQ):1
  • Shipping Port :shenzhen sea port
  • Original Region :Guangdong of china
  • Lead Time :5 work days when receive your payment.

semi auto single color lock logo decal printing machine can printing the lable on different substrate on  necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC

Products Material:

Plastic, ceramic, metal, glass, wood, Painting surface etc.

Feature :

1 Seal ink cup style, then have high-usage of ink and environmental.

2 Printing speed is swiftly and a few of piece machine can make up a produce line.

3 This machine is Semi-automatic ( Pneumatic) with automatic counter for 4 digits;

4 The machine can printing the design as your requested and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 This pad printing machine  installing two programs, single cycling printing and automatic printing.

6 The cylinder of Machine is Germany Festo. Working stable and durable.

7 The body is Cast alloy Aluminum, then it is lighter, more durable and better structure.



parameter:

 Item Name: 125 series semi auto single color lock logo decal printing machine

Item Number:

EP-125AE

Printing colors:

ONE

Printing Speed

2100pcs/ hour

Max metal plate:

75x150mm(3”x6”)

Max printing Size:

50x50mm or Dia:60mm

Ink cup Dia.

60mm

Max height of products

180mm

Air supply

6 Bar

Net Weight

70 KGS

Voltage of source

220 VAC/ 1 Phase 20W

Dimension:

590mm X 480mm X 1250mm



semi auto single color lock logo decal printing machine part:

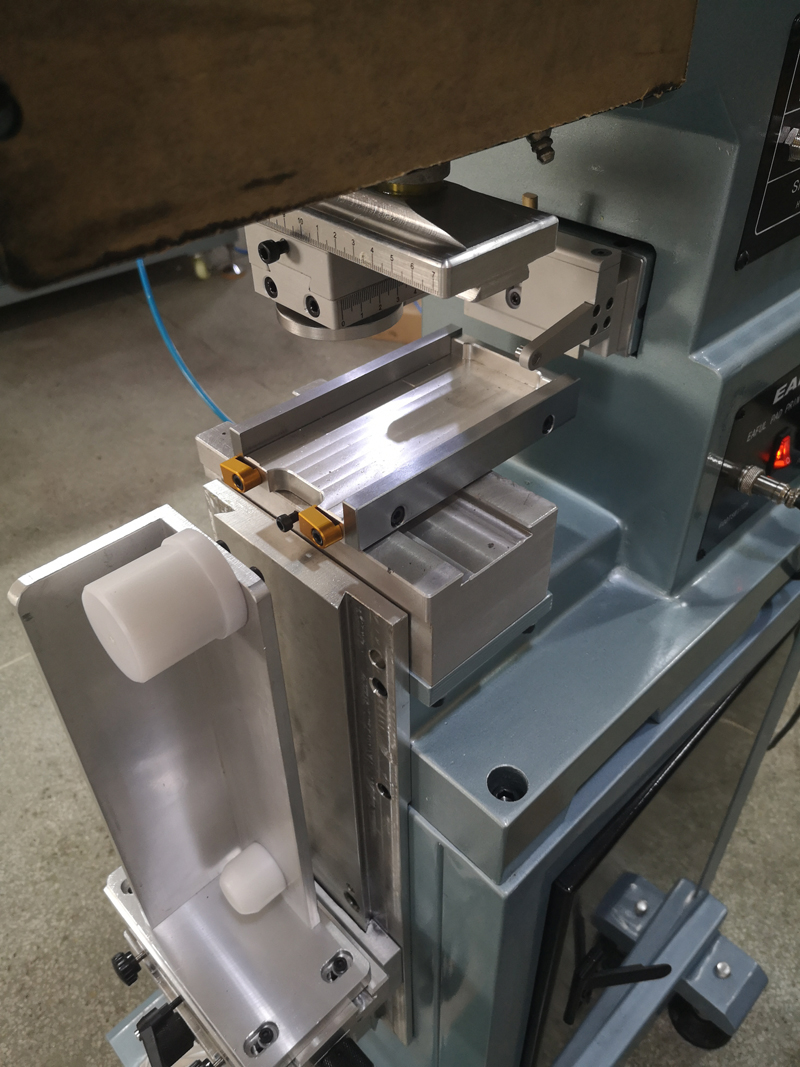

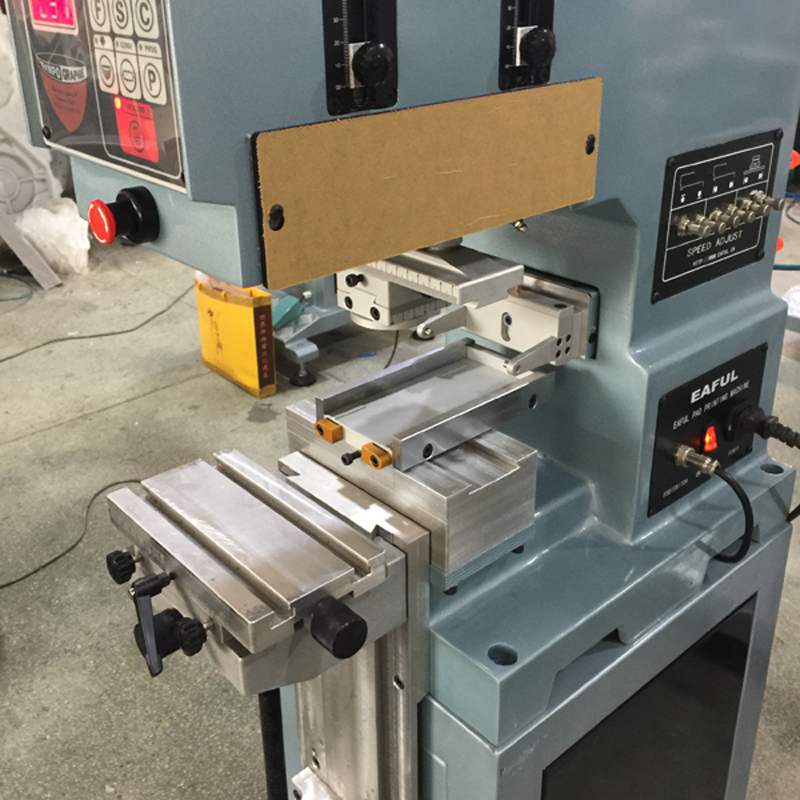

decal printing machine printing system

Remark:

1 The guarantee time is 1 years, And maintain is lifelong.

2 The supplier must sure the machine all work well before package.  If Buyer can not operate the machine, the supplier must try their their best,  no reason and without reserve to teach the buyer completely.

3 Lead time: 5 work days when receive your deposit.

4  Payment: 100% amount T/T to us before the machine leave our factory.

5 package: plywood case



pad logo printing machine
