automatic vertical inkwell one color tampon printing machine

  • Item NO.:EP-160AE
  • Order(MOQ):1
  • Shipping Port :shenzhen sea port
  • Original Region :Guangdong of china
  • Lead Time :10 work days when receive your payment.

automatic vertical inkwell one color tampon printing machine apply for the prints one the strastrate of necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC

Products Material:

Plastic, ceramic, metal, glass, wood, Painting surface etc.

Feature :

1 Seal ink cup style, then have high-usage of ink and environmental.

2 Printing speed is swiftly and a few of piece machine can make up a produce line.

3 This machine is Semi-automatic ( Pneumatic) with automatic counter for 4 digits;

4 The machine can printing the design as your requested and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 This machine  installing two programs, single cycling printing and automatic printing.

6 The cylinder of Machine is Germany FESTO. Working stable and durable.

7 The body is Cast alloy Aluminum, then it is lighter, more durable and better structure.

parameter:

Item Name: 160 series automatic vertical inkwell one color tampon printing machine

Item Number:

EP-160AE



Printing colors:

ONE



Printing Speed

1800pcs/ hour



Max metal plate:

100x200mm(4”x8”)



Max printing Size:

70X 70mm or Dia:75mm



Ink cup Dia.

90mm



Stroke of Ink Cup

100mm



Max height of products

200mm



Air supply

6 Bar

Net Weight

160 KGS

Voltage of source

220 VAC/ 1 Phase 20W

Dimension:

710mm X 600mm X 1420mm

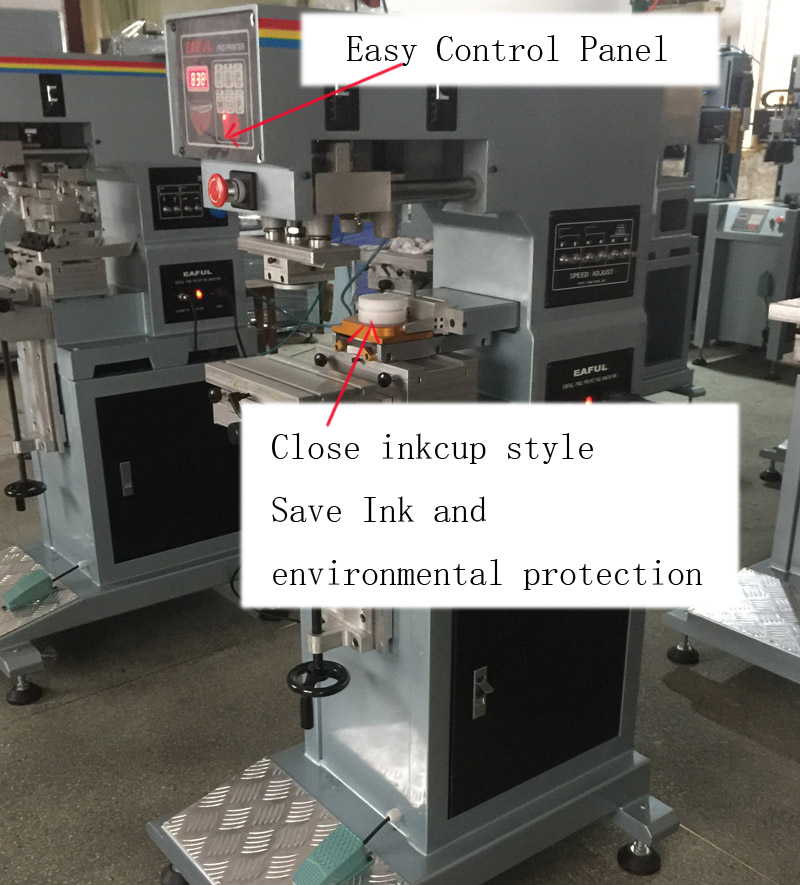

automatic vertical inkwell one color tampon printing machine pad printing system details:

pad printing system

Remark:

1 The guarantee time is 1 years, And maintain is lifelong.

2 The supplier must sure the machine all work well before package.  If Buyer can not operate the machine, the supplier must try their their best,  no reason and without reserve to teach the buyer completely.

3 Lead time: 5 work days when receive your deposit.

4  Payment: 100% amount T/T to us before the machine leave our factory.

5 package: plywood case
