automatic turntable four color screen printing machine with dryer

automatic turntable four color screen printing machine with dryer can also printing below substate:

Printing material: plastic, plastic, metal, leather, glass, wood, paper, crystal, etc.

Cars: car dashboard, automotive glass
Electronics: keyboard, silicone keys, cell phone window, membrane keypad, circuit board
Appliances: nameplates, signs, dials, electrical enclosures, appliance glass, glass stove
Advertising: posters, portraits licensing legislation, road signs, menus, self-adhesive trademark stickers, credit card, scratch
Clothing: T-shirt, number cloth, flags, knitwear
Gifts: toys, stationery, craft painting, transfer paper

Feature:

1 Screen frame lifting adopt servo motor, matching with high-performance lead drive screw and precision linear guides combined net frame movements using screw guide, printing more stable and smooth, higher printing accuracy;

2 printing holder adopt stepper motor,swift run, position accuracy, stroke/speed/director is setted by digitization.

3 Printing holder with integrated pull aluminum molding, simple structure. Blade holder with cylinder with cross roller guide rail, smooth and stable, high precision.

4 Rotary table adopts Taiwan precision cam splitter drive, repeat positioning precision and speed swift, bench micrometer fine adjustment (stroke ± 6mm), vacuum suction platen, product positioning accuracy, prevent rotation during product loosening. One-piece cast aluminum wheel processing, structural stability, excellent rigidity, table flatness accuracy 0.05mm.

5  Robot laying-off:mechanical hands can be formulated material, reduce productivity, increase productivity, machines and production lines docking, cutting directly to the production line, according to customer requirements for non-standard custom.

6 The use of advanced control Mitsubishi PLC control, human-machine interface digital control, you can set a variety of functions and operating parameters, in favor of job data and standard equipment humane.

7 Installation of security bars, security screens, thorough operator personal safety protection;

8 Free oil drainage regulator group does not produce oil mist exhaust pollution, suitable for clean room use.

parameter:

Item Name: automatic turntable four color screen printing machine with dryer

Item Number:      US450-CR4

Printing colors    4(Can register multicolor)

Single circle     May

constant movement   May

Counting       May

Delay time for each parts   May (adjustable)

Printing Speed        600Times/hour

Max Screen Frame        450mmX750mm

Worktable size                300mmX450mm

Turntable Diameter            ¢1450mm

Work piece Quantity            12 pieces

Robot Stroke                   500mm

Max height                 80mm

Screen Frame lifting stroke  120mm

Scraper Stroke           350mm

Scraper/ Ink Blade Lifting Stroke    40mm

Worktable depth adjustment            ±6mm

Feeding Way                      Vacuum absorb or Hand holding

Lifting drvier         Cylinder

Control system          PLC

Voltage                 DC24V

Nominal Voltage      AC220V  50/60Hz

Power           5.5KW

Work air pressure Mpa  0.4-0.6Mpa

Air consumption / cycle   3.0L

Machine Dimension    3150mm（L）*3150mm(W)*1600mm(H)

Weight          1150 KG

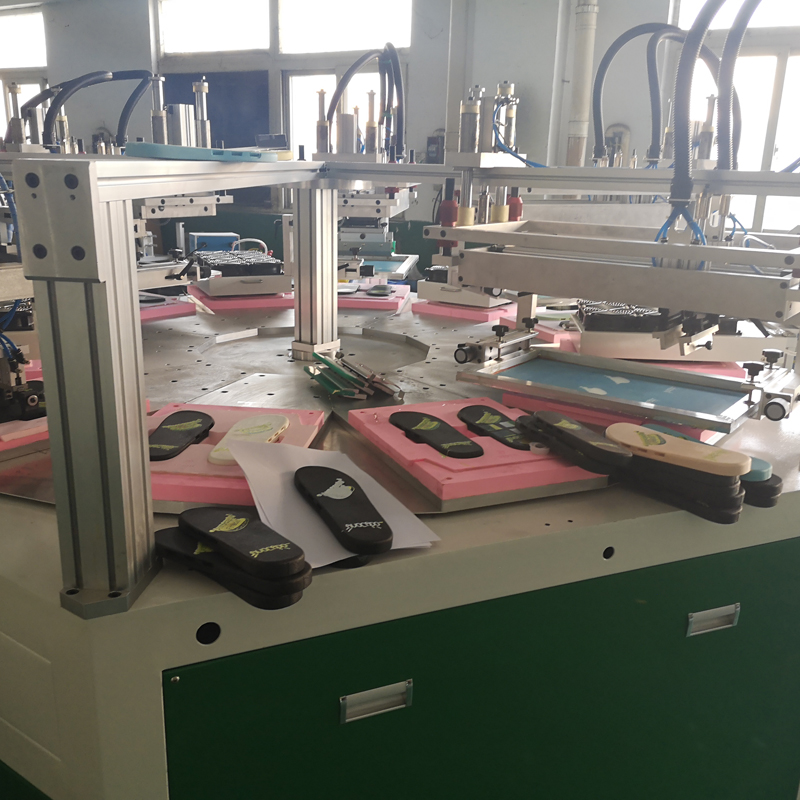

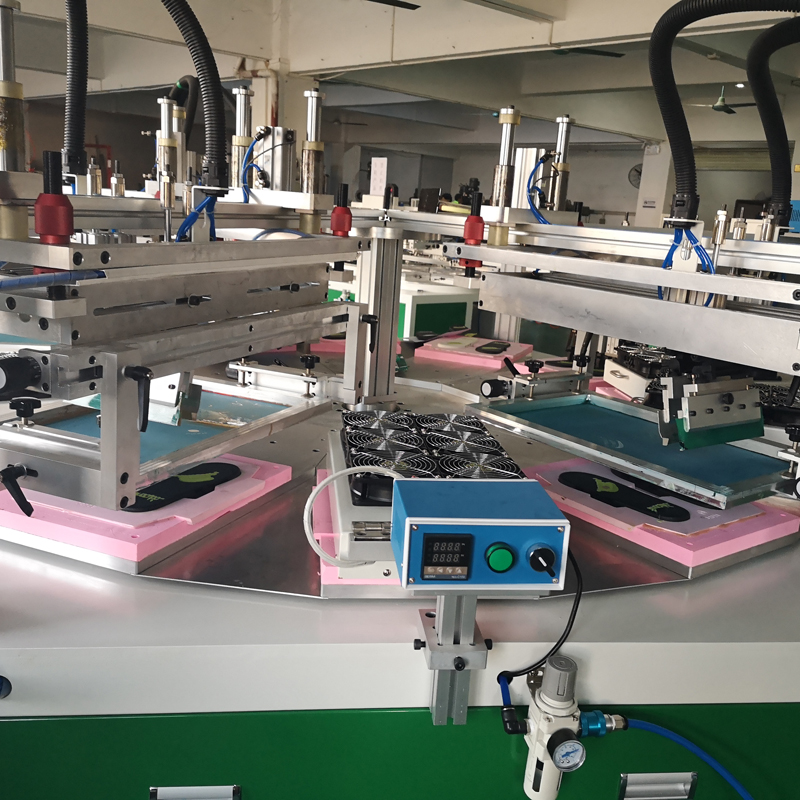

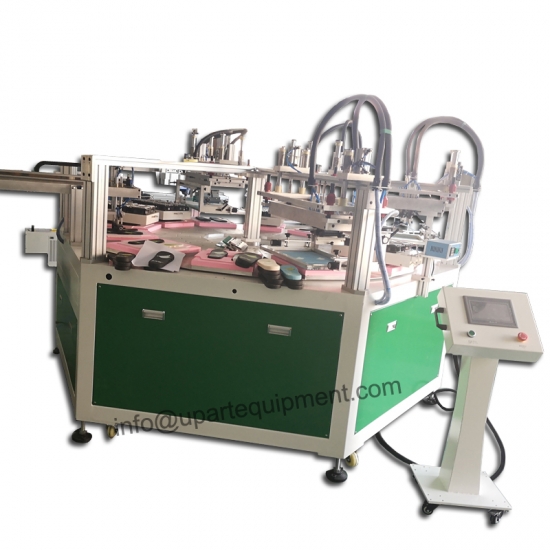

automatic turntable four color screen printing machine with dryer details:

Remark:

1 Delivery Time: 20 days when receive your payment.

2 Package: plywood case

3 Warranty: 1 year
