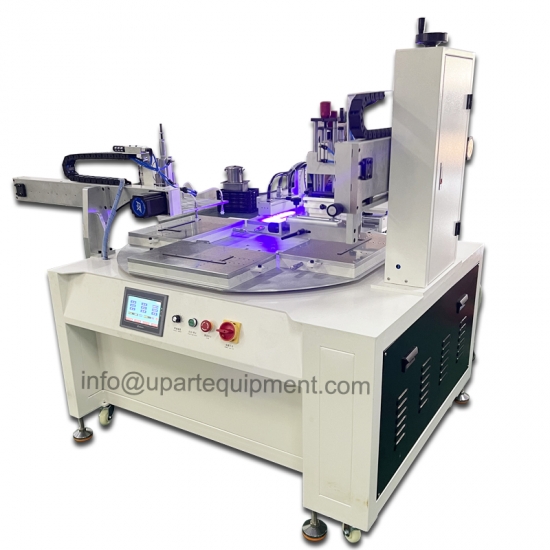

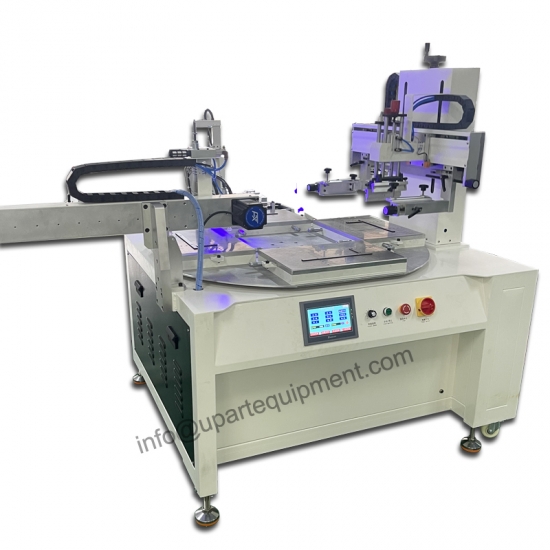

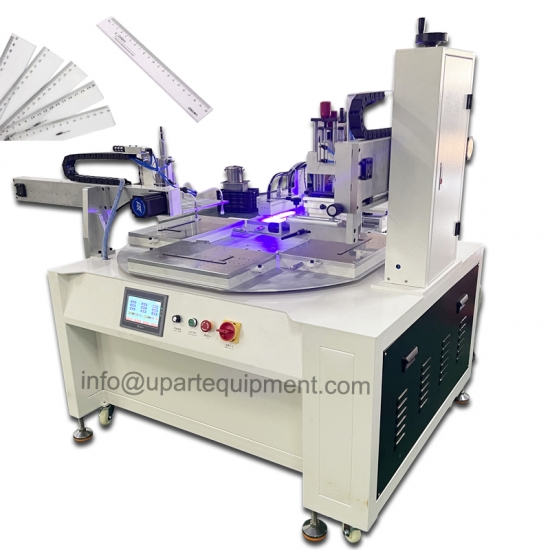

automatic 4 stations rotary rulers screen printing machine

This automatic 4 stations rotary rulers screen printing machine

Printing material: plastic, metal, leather, glass, wood, paper, crystal, etc.

Cars: car dashboard, automotive glass
Electronics: keyboard, silicone keys, cell phone window, membrane keypad, circuit board
Appliances: nameplates, signs, dials, electrical enclosures, appliance glass, glass stove
Advertising: posters, portraits licensing legislation, road signs, menus, self-adhesive trademark stickers, credit card, scratch
Clothing: T-shirt, number cloth, flags, knitwear

Gifts: toys, stationery, craft painting, transfer paper

Parameters:

Item Name:automatic 4 stations rotary rulers screen printing machine

Item Number:      US450-CR4

Printing colors    4(Can register multicolor)

Single circle     May

constant movement   May

Counting       May

Delay time for each parts   May (adjustable)

Printing Speed        1000Times/hour

Max Screen Frame        400mmX700mm

Max Printing Size              250x350mm

Worktable size                300mmX450mm

Turntable Diameter            ¢1250mm

Work piece Quantity            4 pieces

Robot Stroke                   600mm

Max height                 80mm

Screen Frame lifting stroke  120mm

Scraper Stroke           400mm

Scraper/ Ink Blade Lifting Stroke    40mm

Worktable depth adjustment            ±6mm

Feeding Way                      Vacuum absorb or Hand holding

Lifting drvier         Cylinder

Control system          PLC

Voltage                 DC24V

Nominal Voltage      AC220V  50/60Hz

Power           3.5KW

Work air pressure Mpa  0.4-0.6Mpa

Air consumption / cycle   3.0L

Machine Dimension    1600mm（L）*1400mm(W)*1540mm(H)

Weight          380 KG
