automatic IR lamp t-shirt screen printing flash drying machine with sensor
Application:
A flash cure unit is an important piece of equipment in the screen printing process, this flash dryer usually using on the plastisol ink on textile printing,T-shirt printing etc.
1. Full 500 x 600 mm heating area.
2. Adjustable height floor stand ( from 700mm to 950mm ).
3. Adjust the switch on the back to make 2,4 or 6 lamps working as the same time.
4. Attachment a fan, increase 20%-30% efficiency.
5. Quicker flash time and very even heating.
t-shirt screen printing flash drying machine Parameter:
1.Lamp: 6 pcs
2.Power: 6kw
3.Power supply: 220 V 50 Hz
4.Demension: 985 x 700x 1000 mm
5.Net weight: 28kg
6.Gross weight : 30kg
7.Floor to Heating Surface Minimum Height: 30"
8.Floor to Heating Surface Maximum Height: 48"
9.Heating Area: 20" x 24"(500x 600mm)
Feature:
The machine with sensor,when the platen coming ,automatic turn on to working according to your setting time.

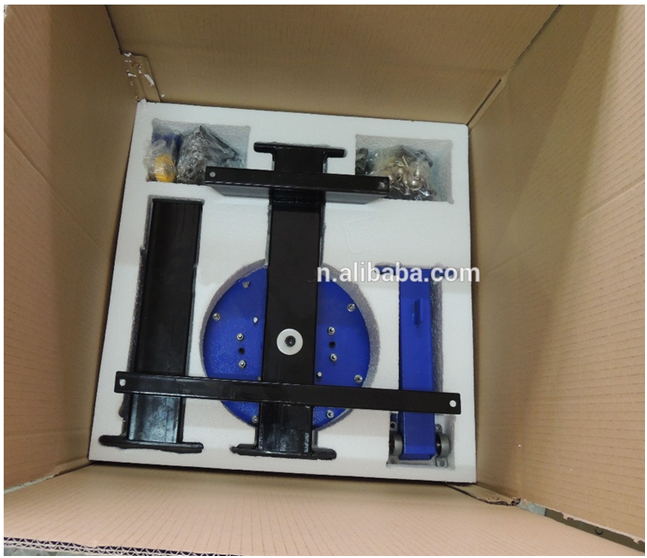

t-shirt screen printing flash drying machine Details:
