Hand Operation Pen Screen Printing Machine for bottles/cups/mugs
Applications:
Widely used in graphic or flat workpiece surface printing patterns such as: glass, electronic products, cosmetics bottles, fittings, pen, toys, water bottles, shampoo bottles, etc.
Hand Operation Pen Screen Printing Machine Parameter:
Item Number:US-160R
Max Printing area:240mmx 200mm
Screen frame size:370mmx 320mmx16mm
Max printing diameter:Dia:160mm
Lifting height adjust scope:180mm
Screen frame back/front stroke:240mm
Squeegee size:25mmx 5mmx 200mm
Net Weight:25Kg
Dimension (Lx Wx H):545mmx 410mmx 365mm
pen screen printing machines by hand Feature:
1 The machine is manual, no need power and easy
to operate;
2 Economical with lower price, can printing every
material of round products.

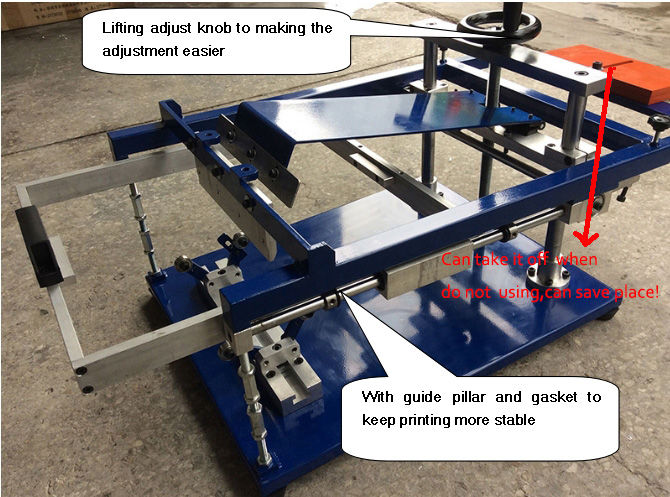

3 The height is adjusted more conveniently with
knob.
4 The balancing weight part can take off which
same place when you do not using.
5 A good help for small quantity and printing
samples.
Hand Operation Pen Screen Printing Machine Details:
