Automatic conveyor double color pad printer
Apply:
This conveyor pad printer is good at printing small regular substrate, such as car dashboard, can caps, dials etc. The pad printing suitable to kinds of material. plastics, metals, ceramics etc which will be limited by the ink.
Feature:
1 Coneyor tampons printing is faster than shuttle, but it is suitable to smaller products. 2 color finishing one time.
2 There are three cylinders for per printing pads for turntable which all together control the position, then Fixing position is precise and stable;
3 This is machine is Semi-automatic, having automatic counter for 4 digits;
4 The machine can do your any printing requested, such as: per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;
5 The cylinder of Machine is Made in China. .
6 The body is Cast Aluminum, then it is lighter and durable.
7 The machine is running agile, steady and low voice.
Parameter:
Item Name: automatic double color conveyor pad printer with open inkwell
Item Number: |
UP-160C2 |
|
Printing Speed |
1800pcs/ hour |
|
Max metal plate: |
100x150mm |
|
The distance of the two ink tray |
127mm |
|
Qty of Station on turntable |
10/ pcs |
|
Printing colors: |
2 |
|
Max height of products |
100mm |
|
Max printing Size: |
75x 125mm |
|
The distance of the two station |
127mm |
|
Adjustable pads size on the metallic plate |
10-60 mm |
|
Voltage of source |
220/110V VAC/ 1 Phase50W |
|
Air supply |
6 Bar |
|
Station Size |
80x 120mm |
|
Dimension: |
850mm X 750mm X 1420mm |
|
Net Weight |
170 KGS |

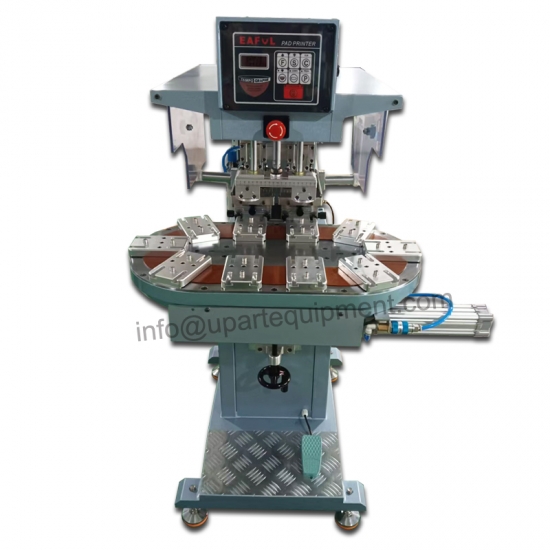

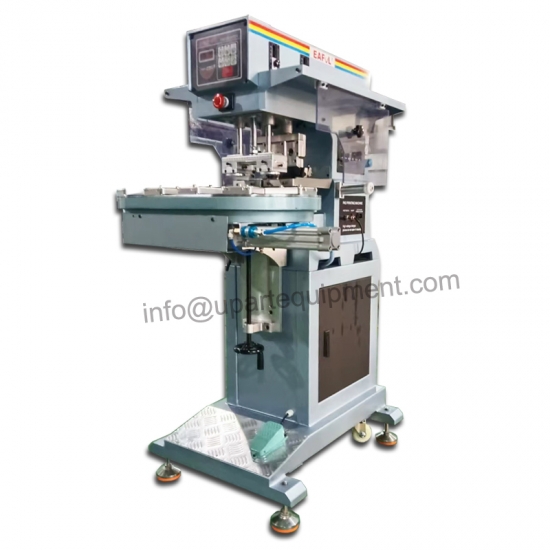

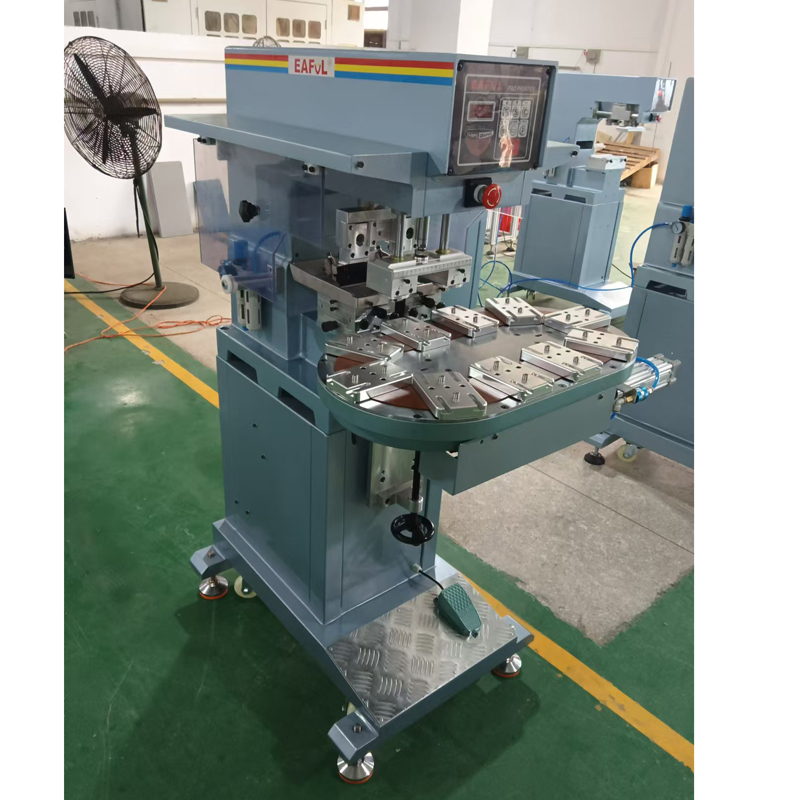

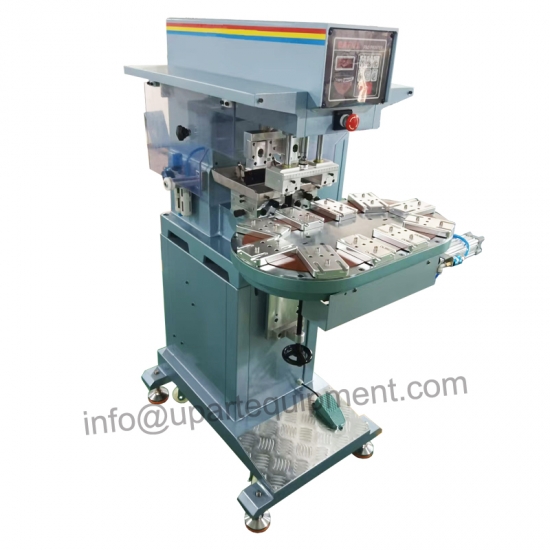

actual picture of this convor pad printing:
