automatic close inkwell four color promotional products pad printer with auto clean pad system also can printing the logon on substrates of necessities, toys, electrons,
electrical
equipment, plastics, leather, metal, glass, light industry and food packages ETC
Material:
Plastic, ceramic, metal, glass, wood, Painting surface etc.
Feature:
1 The printing speed of shuttle pad printer is slower than turntable machine, but which suitable to bigger products. Per time printing 4 colors;
2 There are two cylinders in the worktable which both together exchange control the position, then Fixing position is precise and stable;
3 This is machine is Semi-automatic, having automatic counter for 4 digits;
4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;
5 The cylinder of Machine is Germany Festo which working more stable and durable.
6 The body is Cast Aluminum, then it is lighter and durable. Fine structure.
7 The machine is running agile, steady and low voice.
parameter:
Item Name: 160 series automatic close inkwell four color promotional products pad printer
Item Number: EP-160SE4A
Printing colors: Four
Printing Speed 1000pcs/ hour
Ink cup diameter 90mm
Max metal plate: 100x200mm
Max printing Size: 70x70mm or dia:75mm
Max height of products 150mm
Voltage of source 220/110V VAC/ 1 Phase 50W
Air supply 6 Bar
Net Weight 260 KGS
Dimension: 1350mm X 820mm X 1420mm

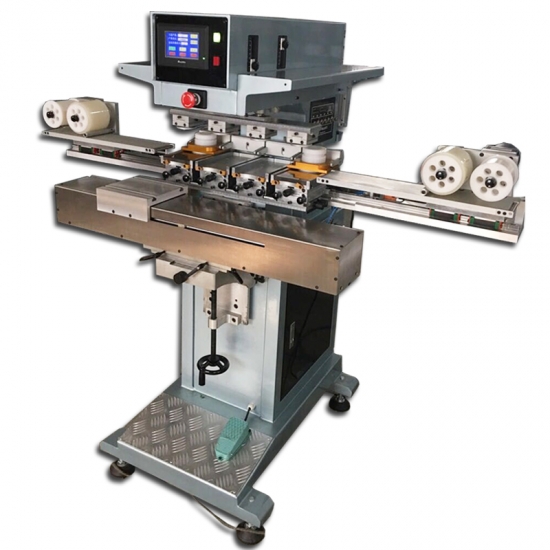

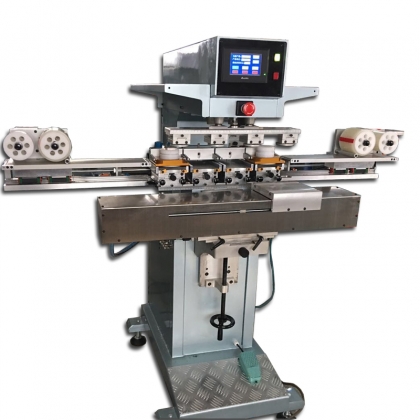

automatic close inkwell four color promotional products pad printer details:
Remark:
1 The guarantee time is 1 years, And maintain is lifelong.
2 The supplier must sure the machine all work well before package. If Buyer can not operate the machine, the supplier must try their their best, no reason and without reserve to teach the buyer completely.
3 Lead time: 12 work days when receive your deposit.
4 Payment: 100% amount T/T to us before the machine leave our factory.
5 package: plywood case
