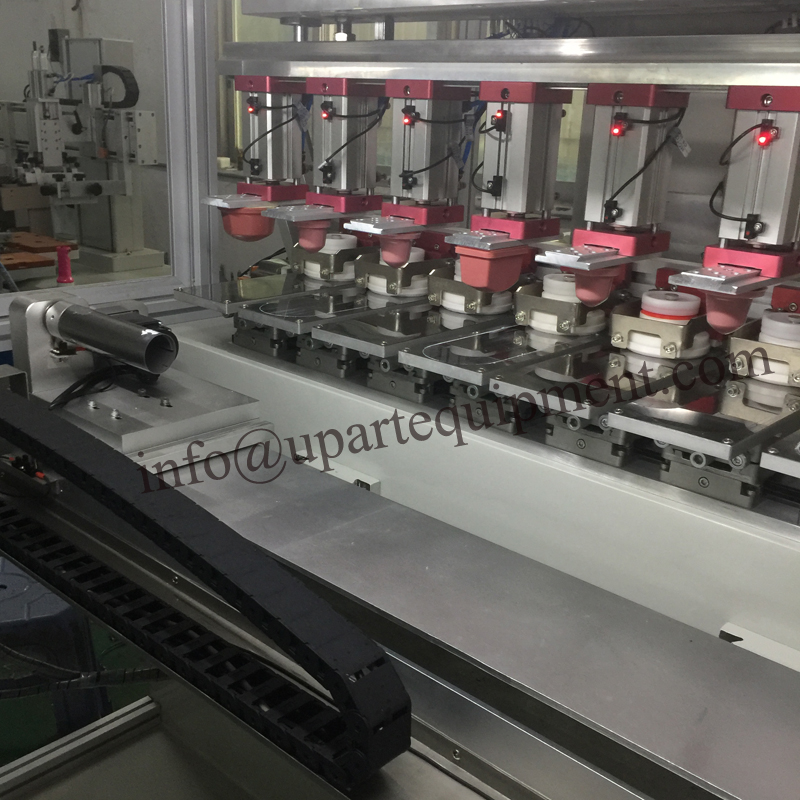

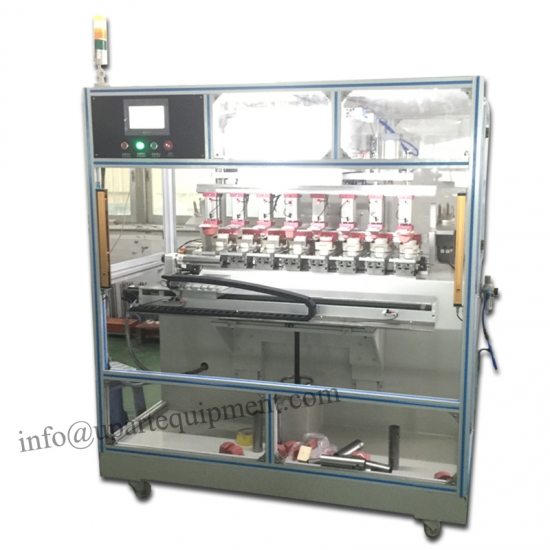

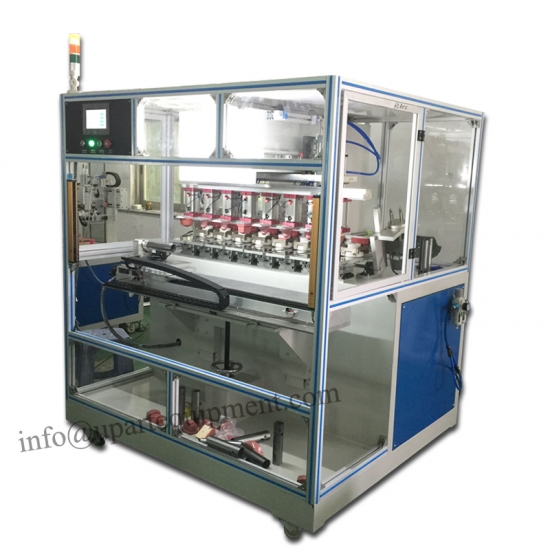

The automatic close inkwell eight color pad printerspecial for large parts, like electric application covers as refrigerator,air condition, printer etc.
Feature:
1 this machine is 8 color shuttle pad printer. 8 colors pattern can be finished at a time.
2 Ink cup style more environmentally friendly.
3 Electric motor driving the steel plate moving which is different with the normal pad printer. More accuracy.
4 PLC with touch screen. The printing program can be setted as your want.
5 The worktable moved the control of servo motor, can be setted stop in an position.
6 The machine can printing 1 - 8colors as your request.
7 with automatic clean pad system, increased the printing speed.
8 Each pads with a cylinder separately controlling, suitable to print large part.
9 Printing accuracy:+-0.1mm
Parameter:
Item Number: |
UP-325SE8Y |
Printing colors: |
8 |
Printing Speed |
100pcs/ hour |
Max metal plate: |
180X350MM (7x 14inch) |
Ink cup diameter |
160mm |
Max printing Size: |
1450x1450mm/ Dia:1450mm |
Max height of products |
300mm |
Stroke of pad |
300mm |
Air supply |
6 Bar |
Voltage of source |
380V/ 500W |
Dimension: |
2100x 1050x 1650mm |
Gross Weight |
720kgs |
automatic close inkwell eight color pad printer part:
Remark:
1 The guarantee time is 1 years, And maintain is lifelong.
2 The supplier must sure the machine all work well before package. If Buyer can not operate the machine, the supplier must try their best, no reason and without reserve to teach the buyer completely.
3 Lead time: 40-50 days when receive your deposit.
4 Payment: 100% amount T/T to us before the machine leave our factory.
5 package: plywood case
