uv curing industrial machine
Scope of application:
Widely used in cell phone case, CD, membrane switch, electronic plastic shell surface UV paint coating; various UV coatings, IMD injection products curing ink; used in the curing of electronic components, LCD, sealed plastic terminals, mobile component adhesive, LCD and other adhesive and plastic components; the device small, light weight, well-made, easy to move.
uv curing industrial machine Parameter:
Name |
Parameter |
Item |
UV-300-1 |
Power Source |
A.C 220V |
Feeding/Outer Length |
350/350mm |
Working area |
300mm |
Feeding Height |
0-90mm adjustable |
Transfer Form |
Belt conveyor |
Belt Width |
300mm |
Wavelength |
365nm |
Transfer Speed |
0-10m/min |
Transmission Type |
Chain Drive |
UV Lamp |
2KW 300MMx 1 piece |
Lamp Usage |
24 hours continue using 600-800 |
Decorative form |
Spray |
Total Power |
2KW |

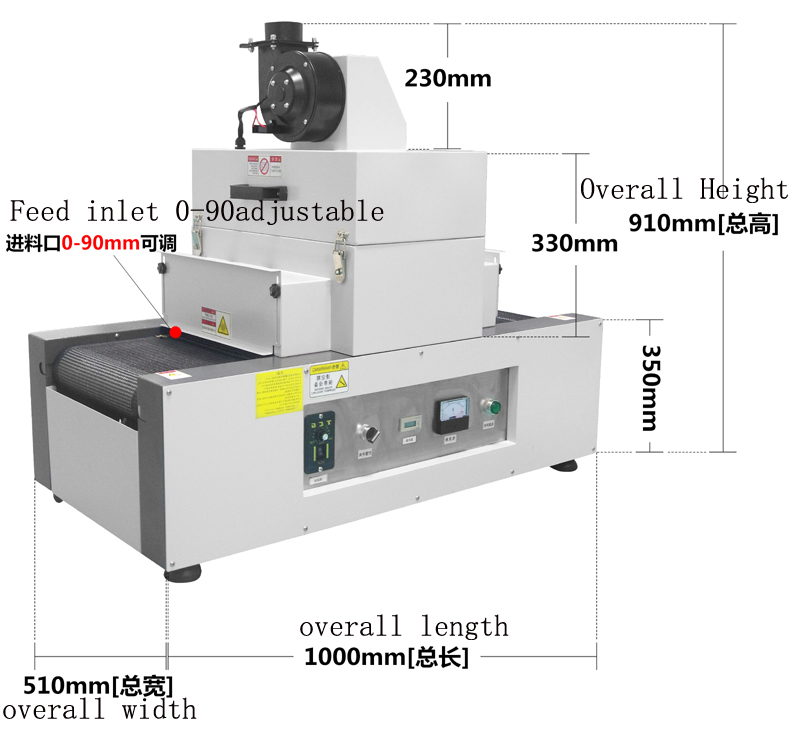

Outer Dimension |
L1000mmx W510mmx H910mm |
Package size |
1070x 600x 1030mm |
Gross Weight |
139kgs |
uv curing industrial machine Features
1. Instant dry, high production efficiency.
2. After drying make the surface achieve high hardness, high gloss, abrasion resistance, solvent effect.
3. Drive with roller transmission, frequency stepless speed regulation.
4. Conveyor offset prevention, to ensure smooth delivery.
5. High quality and efficient lamp, lamp room compulsory heat, extend lamp life, the protection of dried goods will not heat deformation.
6. Case body surface all spray, nice, corrosion-resistant.
The machine innovative design, reasonable structure, effective working area, full-function, easy operation, easy maintenance and adjustment, low noise, high reliability, low cost, low energy consumption, high production efficiency.
