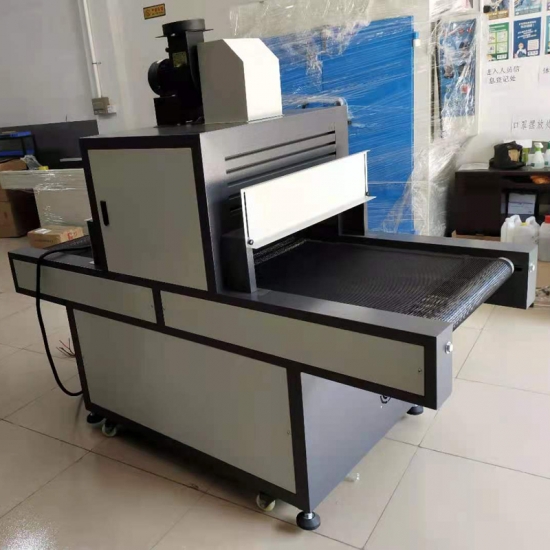

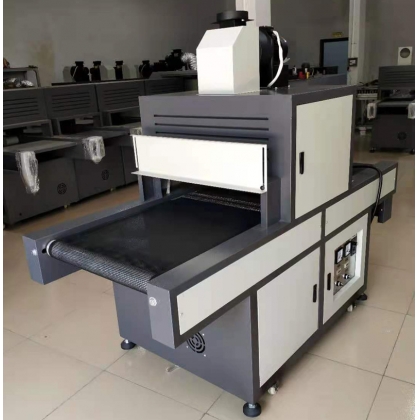

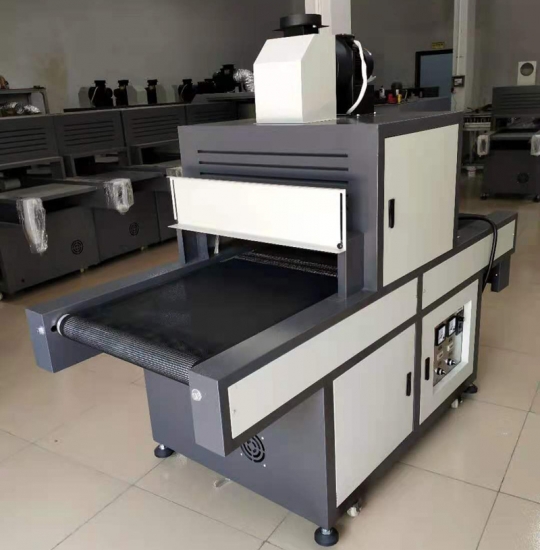

screen printing uv drying machine

screen printing uv drying machine Application:

Printing paper surface processing

Plastic flooring, flooring materials, surface coating, surface modification

Surface coating of plastic molded products

Surface coating inorganic building materials

Manufacturing of motor parts

Surface coating wires, optical fibers

Printed

Sticker, label printing (letterpress printing, offset printing)

Business Forms Printing

Thin plastic printing plastic

Thick paper printing

Sheet-fed printing

parameter:

Belt Width: 600mm

Feeding height: 120mm (adjustable)

Conveyor speed: 4000 pcs/hour

Voltage: AC 380C 3phase 50HZ

Power: 6.5kw

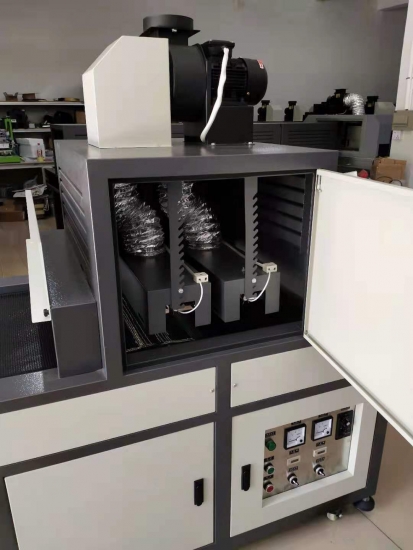

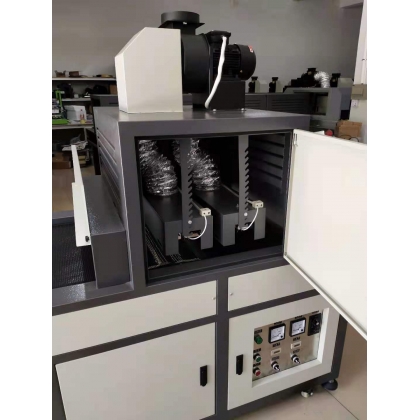

Lamp length: 620mm

Lamp Power: 3KWx 2 pieces

UV lamp wave: 365nm

Machine dimension: 2100x 850x 1650mm

Machine weight: 210kgs

Operation Instruction:

1 Be sure if the voltage is right.

2 Put down the both of light barrier and adjust them to good position.

3 Plug the power cord properly connected (three-phase five-wire, black wire is zero line, flower wire is the ground wire;

4 Close the electrical box GFCI (chassis bottom left), the machine is in standby mode.

5 Press the green start switch, power indicator light, mesh belt running, adjust the speed control knob according to product requirements, so that the net with velocity appropriate.

6 Machine automatically starts left UV, UV light and right, about 3-5 minutes into the product curing.

7 Shutdown: This machine is one-button auto delay off, press the red stop switch, red light, about 2 minutes delay shut down automatically after the power switch is not required to close the drain.

8 Generally temperature controller is set to approx 30

Remark:

1 The price is Ex-worker.

2 Package: standard export plywood case.

3 Delivery Time: 5-7 work days when receive your payment.

4  Payment: 30% deposit in advance, the balance against the machine is ready.

5 Warranty: 1 year
