large circular screen printer
Machine Introduction:

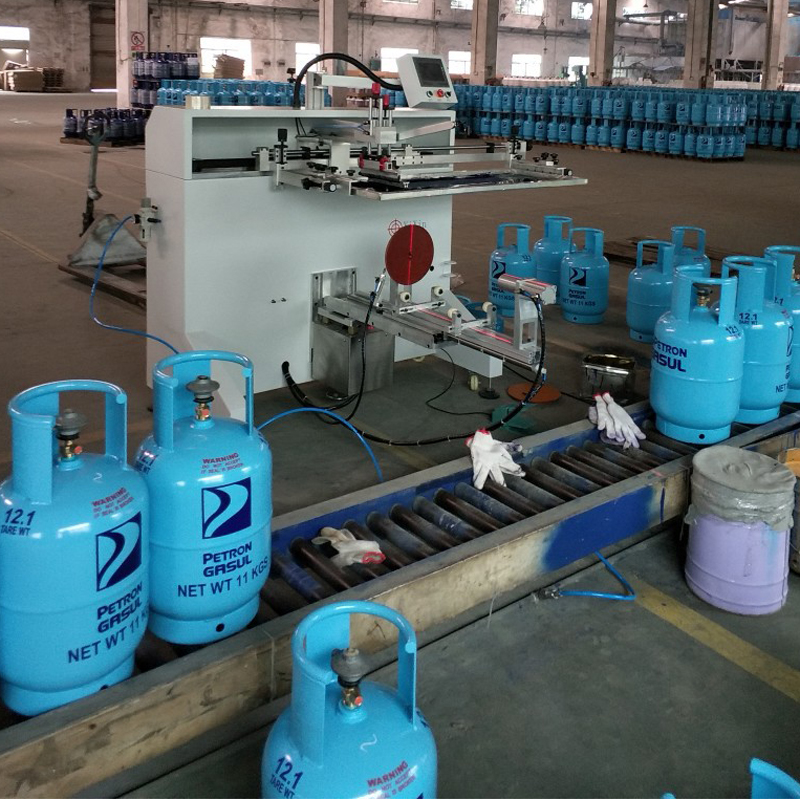

This circular screen printer suitable for printing large bucket, barrel type trademark mineral water barrels, chemical barrels, paint buckets, oil drums and so on.
The machine with variable frequency motor control rail slide printing, More stable, higher precision, lower noise.
large circular screen printer Feature:
1 Microcomputer controls each function with high automation and easy operation;
2 Equipped with four-digit and auto counter;
3 Can printing round, conical products.
4 Printing stroke and speed is adjustable for meet different printing request.
5 Workbench up/down, left/right is adjustable. High printing accuracy,easy adjust.
6 Pneumatic control printing head with micro computer adjust system.
7 Stable and reliable microcomputer system controller;
8 Clear LCD display, display the working status of the machine at any time;
9 Good quality and perfect Korea sensor failure alarm system;
10 With foot pedal, easy operate.
11 High quality alloy die-casting parts and wear sleeve bearings;
12 Inverter motor control enables more accurate stopping position;
13 Independent printing and ink cover.
14 With blow function, can printing soft products.
15 Round and flat products separate dedicated fixture;
16.Rail structure around slide printing, printing smoother, more accurate
large circular screen printer parameter:
Start mold: Panel/ foot pedal
Up/Down drive way: pneumatic
Left/ Right drive way: pneumatic
Up/down stroke: 160mm
Left/right stroke: 1500mm
Max Screen Frame size: 600x 1900mm
Max printing area: 1500 (L)mm x 400mm( W)
Max diameter scope: Dia 20-480mm
Max printing length: 1350mm
Printing speed: 350 pcs/ hour
Voltage: 220V 50/60HZ 500W
Air Pressure: 6bar
Machine dimension: 1820mm X 1350mm X 1680mm
Weight: 430kgs
Remark:
1 Payment: 40% deposit T/T in advance, the balance against the machine is ready. Or 100% amount T.T to our bank in advance.
2 Lead Time: 15 days when get your deposit.
3 Package: Standard Plywood case.
