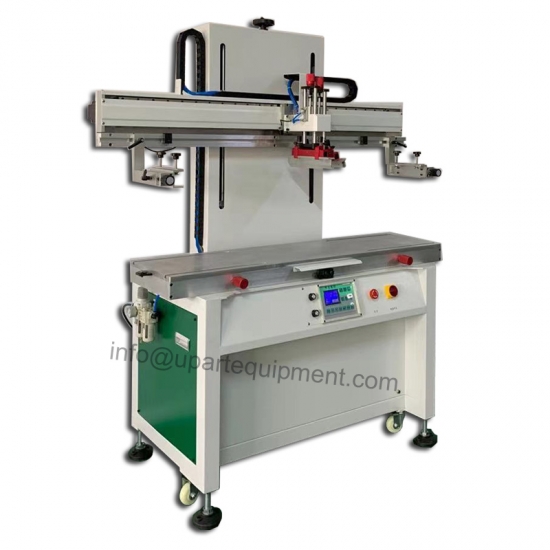

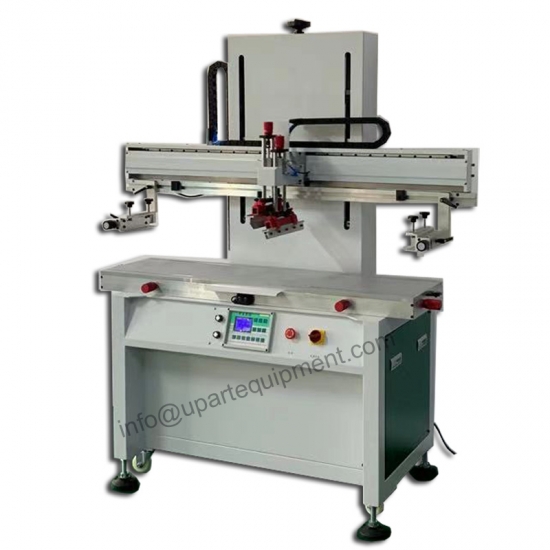

automatic flatbed screen printer

automatic flatbed screen printer special for printing flat substracts, such as below:

Printing material: plastic, plastic, metal, leather, glass, wood, paper, crystal, etc.

Cars: car dashboard, automotive glass

Electronics: keyboard, silicone keys, cell phone window, membrane keypad, circuit board

Appliances: nameplates, signs, dials, electrical enclosures, appliance glass, glass stove

Advertising: posters, portraits licensing legislation, road signs, menus, self-adhesive trademark stickers, credit card, scratch

Clothing: T-shirt, number cloth, flags, knitwear

Gifts: toys, stationery, craft painting, transfer paper

Performance Introduction

1.Microcontroller IC Compiler with touch panel operation program;

2.Automatic four-digit counter, statistics the number of prints;

3.Full cast aluminum fuselage, the surface of metallic paint;

4.Double-column lifting structure, high precision stable;

5.About adjustable stroke, Taiwan photoelectric switch limit;

6. Scraper/ ink cover angle is Adjustable.

7.Scraper constant pressure device to ensure pressure stability of the printing process;

8.Right around the table, around, and fine-tune the angle of rotation lock;

9.The frame position can be front, left, horizontal, height adjustment;

10.Vacuum worktable, easy to fix soft and light products.

11. Up, down, left, right with Taiwan CEC Hydraulic shock absorber to eliminate printing shock;

12.Whole machine working fast, stable, low noise. Action mold have full automatic/semi automatic/ manual.

parameter:

Item Name:automatic flatbed screen printer

Item number: US-1200F

Printing surface: flat surface

Printing color: can register colors

Start Model: Foot Pedal

Up/down drive way: pneumatic

Left/ right drive way: Electric

Left/right stroke:1200mm

Up/down stroke: 150mm

Max screen frame size: 550x 1350mm

Workbench size:300x 1200mm

Max printing area: 250x 1100mm

Max products thickness: 100mm

Printing station: 1 piece

Printing speed: 800 times/ hour

Voltage: 220V  50-60MHZ 500W

Air pressure:5-7BAR

Machine dimension:1450x 650x 1680mm

Remark:

1 Price is Ex-worker and include the standard export case.

2 Delivery Time: 12 days when receive payment.

3 Payment: 40% deposit in advance, the balance against the machine is ready.

4 Warranty: 1 Year.
