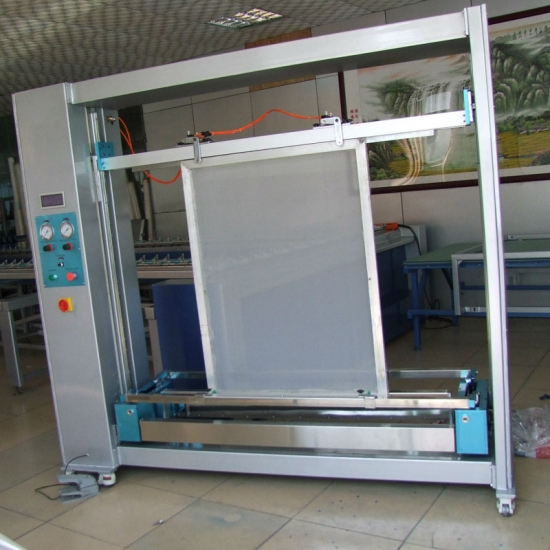

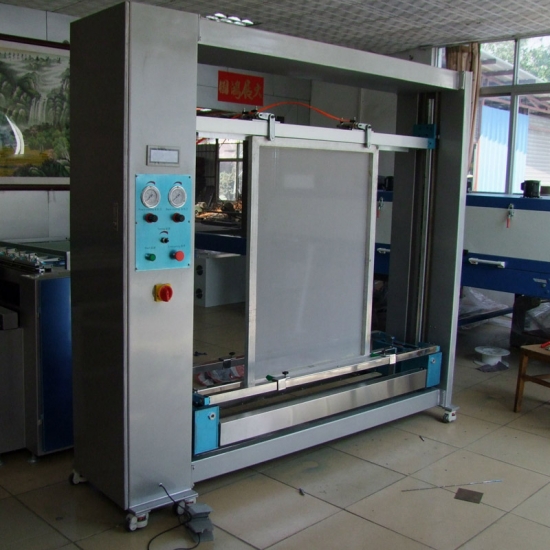

automatic coating machine for silk screen
Parameter:
Item Number |
UCT-10120 |
Machine Dimension(L x W x H) |
2000 x 680x 2100mm |
Max screen frame size |
1000x 1200mm |
Max coating area |
700x 900mm |
Suitable to the screen thickness |
20 to 50mm |
Can setting coating times |
1-10 times |
Coating speed |
Stepless adjustable |
Working air pressure |
0.5Mpa |
Drive Motor |
0.75KW |
Transmission mode turbine deceleration |
SUBI 1:60* 2P |
Electric Source |
2P 220V/0.5KW/50Hz |
Net Weight |
400kgs |
Automatic Coating Machine Feature:
1 Adopt PLC and HMI control panel.
2 Drive Mode, conveyor taking machine to move, not easy to smooth.
3 Clamp/ release screen frame adopt foot pedal and cylinder, easy taking on and off.
4 Motor reduction box have two pieces, the coating speed, time, single or two sides can be setted as your request.
5 With pressure adjust device, the coating thickness can be setted as the pressure and times to control.
6 When the stroke end, automatic reduction coating to frame 20mm, no need repair the side.
7 Adopt one metal plate processed, the guide using special steel material to achieve low-shake to make the coating balance.
8 Control panel can be setted english and chinese, many coating model and details.
9 Front/back total 4 pieces fine tuning function,can random adjusting the coating thickness, balance etc.
Main component configuration
Drive Motor, screen frame lifting Motor, moving, Walk the linear guide,walk synchronous belt,cylinder, linear bearing,other bearings, PLC, frequency controller,instrument,
Sensor, power switch, trundle
